A unique testing facility dedicated to smart equipment and solutions
Concept Grid is a real "smart" distribution network representative of a real electric system from the primary subtation to residential appliances.
This platform offers the possibility to create and conduct, in complete safety, complex testing campaigns which would be impossible to perform on a real network.

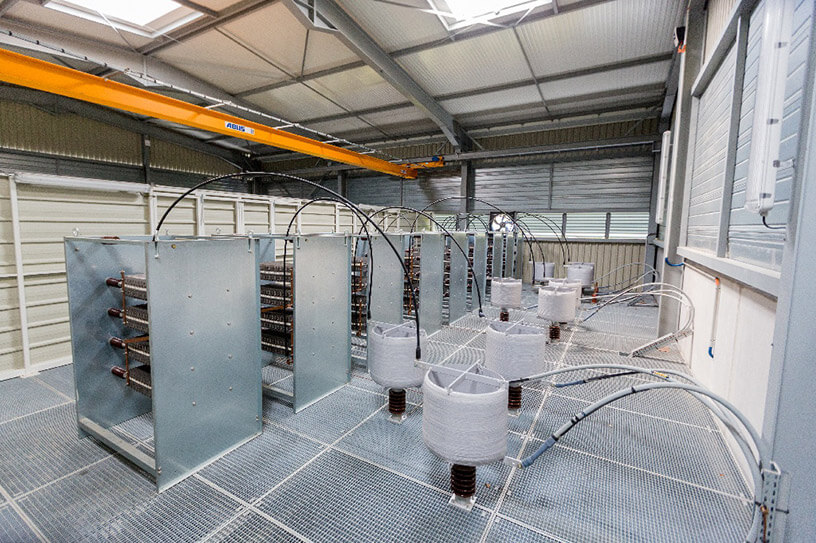

The MV network consists of 3 km of underground cables and overhead lines, to which are added 120 km simulated by RLC banks. Three different neutral point treatments can be selected according to needs. Three secondary substations allow the energy to travel over 7 km of LV network which can be connected to a motor generator or a power amplifier. Coupled with real-time simulator, the amplifier allows us to generate complex generation or power comsumption scenarios.
A complete set of loads and distributed energy ressources are connected: PPV panels, micro-wind turbines, remote controlled household appliances, terminals for electrical vehicule charging, storage systems,...
MV and LV networks
Concept Grid was designed to be representative of a real power system, from the substation to the customer. The integration of a device or an innovative solution can then be studied realistically.
Download documents
-
Concept grid PDF - 3.07 MB
Technical capabilities
Architecture
| Eléments | Description | note |
| Networks | 7 km LT 3 km HVA 120 km HVA simulated (RLC) |
Flexible underground cable and overhead lines network |
| Station | One primary substation (6 MVA transformer) Two secondary substations (400 kVA transformers) |
Vacuum breakers Transformer with amorphous sheet steel |
| Residential area | 5 sample houses Charging terminals for electrical vehicules (slow, semi-fast…) PV, Micro wind generator |
Linky architecture in the whole district |
| Storage System (SS) | Li-on battery (50 kW ; 106 kWh) Supercapacity (70 kW) Li-on battery (160 kWh) Hydrogen system |
|
| Ultra fast charging testing platform (EV) | Capability to connect and supply High power charging stations for EV up to 1,5MW. Dedicated concrete surface of 160 square meters to welcome different chargers |
Disturbances
| MV Networks | Faults | Overhead and underground Single-phase to earth, line to line, Three-phases 3 Neutral treaments: impedant, compensated, active |
| LV Networks | Motor generator | 50 kVA (generating or absorbing) Voltage disturbance (± 11% Around Un) Frequency disturbance (± 3 Hz Around 50 Hz) |
| Power amplifier | 120 kVA (source) / 60 kVA (load) Voltage, current and frequency Creation of harmonics up to 25 kHz |
|
| Short-circuit | Line to ground, line to line, three phase |
Telecommunications
| Mono-mode optcal fiber | SCADA (61 850) Data transfer by IP-MPLS |
Supervision, remote control Measures, advanced grid supervision functions |
| Power Networks | PLC communication | Linky smartmeter Structure-Load control |
| Wireless | Study of any protocols (in particular resistance to a disrupted electric environment) | Remote controlled switches Sensors |
Real-time simulation
| Function | Description |
| Simulation | OPAL-RT licence Real time Up to 8 cores P-HIL compatible |
| Amplification | 4 quadrants amplifier 3 modes of operating (U, I, Z) 120 kVA (source) / 60 kVA (charge) -> unique ! P-HIL compatible |
